Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force
Datos del producto:
| Lugar de origen: | China. |
| Nombre de la marca: | JUNSON |
| Certificación: | CE/ROHS/FCC |
| Número de modelo: | JS-135F |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 por ciento |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Empaquetado en cartón |
| Tiempo de entrega: | 2-7 días hábiles después de recibir su pago |
| Condiciones de pago: | T/T, PayPal o Western Union por adelantado |
| Capacidad de la fuente: | 30,000pcs por mes |
|
Información detallada |
|||
| Modelo: | JS-135F | Nombre del producto: | huelga eléctrica |
|---|---|---|---|
| Característica: | Faile a salvo | NC-No de tipo: | Ajustable |
| Fuente de alimentación: | 12V | Señal hacia fuera: | N / A |
| Estructura de huelga: | Cubra con cinc el fundición a presión a troquel | Fuerza de retención: | 800 kg |
Descripción de producto

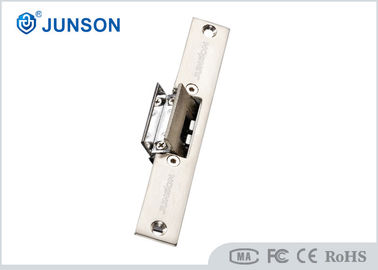

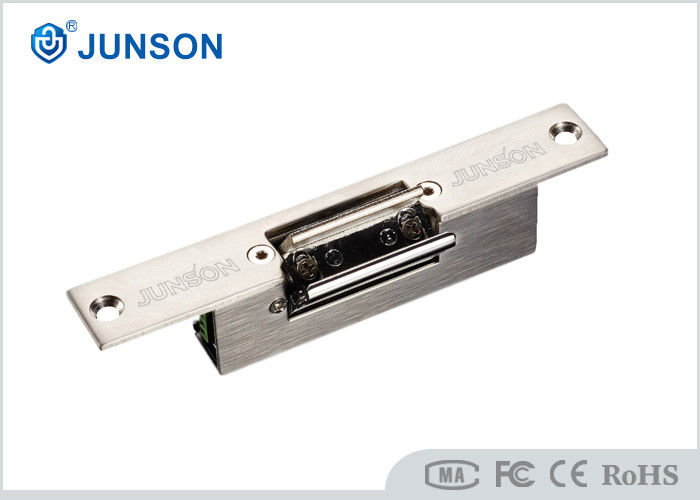

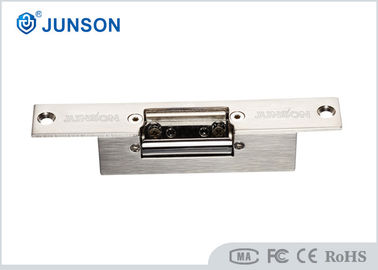

Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force
JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.
Parameters:
|
Lock Dimension |
160Lx25Wx31H(mm) |
| Weight | 0.4kg |
|
Standard Packing |
60pcs |
| Cartons size | 54L * 20W * 30.5H (cm) |
|
Holding Strength |
800kg |
|
Style |
Fail Safe |
|
Voltage |
12V DC |
|
Current |
200mA |
|
Available lock |
Rim lock, mechanical lock |
|
Suitable for |
Narrow wooden door, narrow metal door |
|
Special design |
Adjust lock tongue to NO type |
|
Surface Temp |
Within + 20℃ |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
Coating nickel |
|
Strike Structure |
Stainless Steel |
Features:
-
High Holding Force: Supports up to 800kg.
-
Durable Materials: Constructed with aluminum housing and stainless steel bolt.
-
Reliable Performance: Tested to over 1,000,000 cycles for long-term use.
-
Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.
