36V DC Fire Exit Door Release Button 3A ABS with Dull Polish Finish
Datos del producto:
| Lugar de origen: | China. |
| Nombre de la marca: | JUNSON |
| Certificación: | CE |
| Número de modelo: | JS-GR01 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 50 por ciento |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Empaquetado en cartón |
| Tiempo de entrega: | 2-7 días hábiles después de recibir su pago |
| Condiciones de pago: | T/T, PayPal o Western Union por adelantado |
| Capacidad de la fuente: | 20,000pcs por mes |
|
Información detallada |
|||
| Marca: | Junson | Modelo: | JS-GR01 |
|---|---|---|---|
| Materiales: | Vivienda del ABS | El contacto: | CO/NC/COM |
| Tamaño: | 86*86*50 mm | Disponible: | Sistema de seguridad |
| Nombre del producto: | Liberación de la puerta | Voltaje: | Max 36V DC |
Descripción de producto

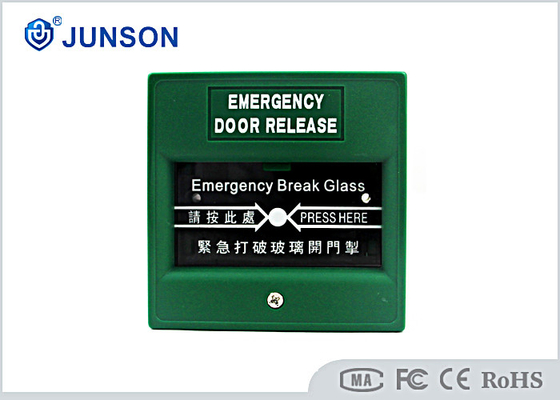

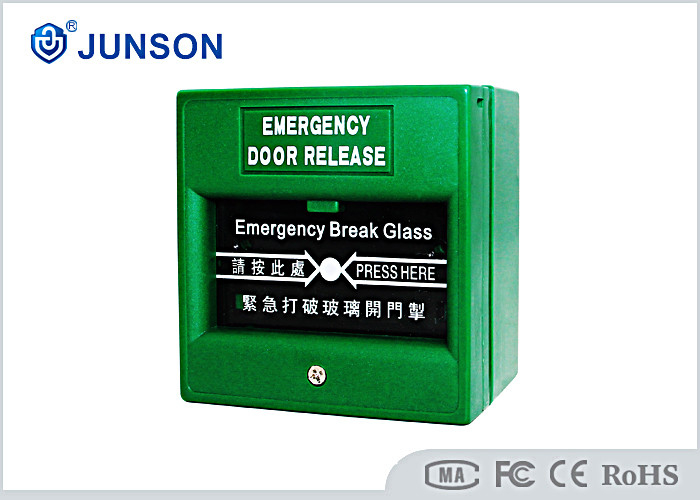

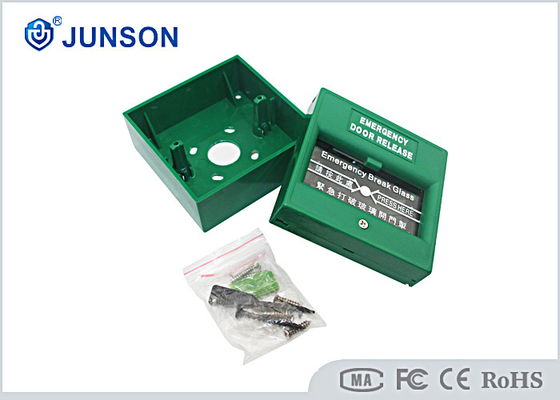

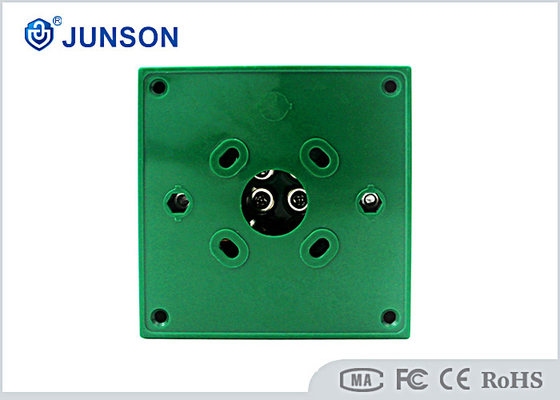

JS-GR01 fire exit door release button operates on 36V DC, 3A load. Made of durable ABS with dull polish finish, it ensures reliable performance and quick emergency access for secure exit solutions.
Parameter List
| Size | 86 * 86 * 50mm |
| Materials | ABS housing |
|
Thickness of materials
|
3mm |
| Voltage: Max | 36 V DC |
| Maximum current | 3A |
| Dry contact | No,NC,COM |
| Finishing |
Sandblast finishing
|
| Optional accessories | Transparency cover |
| Facing finishing | Fireproofing materials, dull polish |
| Color | Green, Yellow, Red, White |
|
Mechanical life
|
500000 times
|
| Operation temperature | -10-55℃ |
| Operation Humidity | 0-95℃ |
| Available |
All kind of Emergency exit
|
Features
-
Emergency Release: Designed for quick and safe door unlocking in emergencies.
-
Fire-Retardant Material: Built with high-quality, flame-resistant materials for added safety.
-
Color Options: Available in red, green, white, and yellow.
-
Output Configuration: Single output with NO/NC/COM terminals.
-
Electrical Rating: Supports up to 3A @ 36VDC max.
-
Wide Application: Suitable for escape doors, emergency exits, and safety access points.
