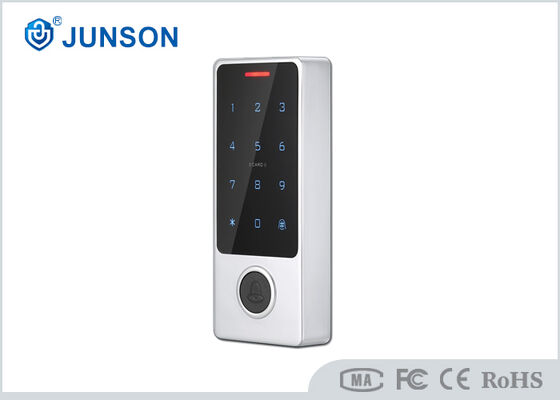

Tuya Smart IP67 Waterproof Access Control Reader with Card & PIN Entry
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | JUNSON |
| Certificación: | CE/FCC |
| Número de modelo: | JS-K6920 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juegos |
|---|---|
| Precio: | Negociable |
| Tiempo de entrega: | 2-7 días hábiles después de recibir su pago |
| Condiciones de pago: | T/T,paypal o Western Union por adelantado |
| Capacidad de la fuente: | 15,000pcs por mes |
|
Información detallada |
|||
| tipo de producto: | Lector de control de acceso de huellas dactilares | Marca: | JUNIOR |
|---|---|---|---|
| Modelo: | K6920-EM / K6920-MF / K6920-EM+MF | Material: | Metal (antivandálico) |
| Color: | Plata | Voltaje de funcionamiento: | CC 10 V ~ 24 V |
| Temperatura de funcionamiento: | -20°C ~ 60°C | Clasificación de protección: | IP67 |
Descripción de producto
Product Title
Tuya Smart Metal Waterproof Access Control Reader with Keypad – IP67 – Fingerprint & Card & PIN – Wiegand 26-44 Bit – 100 Fingerprints 10,000 Cards – Outdoor Door Entry System
Model Number
JS-K6920-EM / JS-K6920-MF / JS-K6920-EM+MF (Tuya)
Short Description
Professional-grade Tuya Smart metal waterproof access control reader with full keypad, fingerprint sensor, and multi-card support. IP67 rated for outdoor use, Wiegand interface compatible, 100 fingerprints + 10,000 card users capacity.
Product Description
The JS-K6920 series is a premium metal waterproof access control reader featuring a full numeric keypad, fingerprint sensor, and RFID card reader in one integrated unit. Powered by Tuya Smart platform, it delivers comprehensive door entry management through mobile APP remote control.
Built with anti-vandal metal housing and conforming to IP67 waterproof standard, the K6920 is engineered for demanding outdoor environments — from office buildings and factories to residential communities and parking facilities.
This versatile reader supports up to 5 authentication methods: PIN code, RFID card (125KHz EM or 13.56MHz MF), fingerprint, smartphone APP remote unlock, and visitor temporary access. The large user capacity of 100 fingerprint templates and 10,000 card records makes it suitable for small to medium enterprise deployments.
With Wiegand 26–44 bit (including 58 bit) input/output interface, the K6920 integrates seamlessly with most access control panels on the market. Both pulse mode and toggle mode are supported to match different lock types and access scenarios.
Key smart features include OTA over-the-air firmware upgrades, door status monitoring, real-time record query, and user data transfer — all manageable from the Tuya Smart APP or via the device keypad.
Key Features
- Tuya Smart APP Integration — Full remote management: add/delete users, view access logs, unlock doors remotely from anywhere
- OTA Online Upgrade — Keep your device up to date with the latest features via over-the-air firmware updates
- Flexible PIN Code Period — Configure validity time windows for PIN codes to enhance security
- Anti-Vandal Metal Housing — Robust metal case with anti-vandal and anti-explosion design
- IP67 Waterproof Rating — Fully dust-tight and water-jet protected, certified for outdoor installation
- Multi-Frequency Card Support — Compatible with 125KHz EM cards, 13.56MHz MF cards, or dual-frequency EM+MF cards
- Large User Capacity — Stores 100 fingerprint users + 10,000 card users
- Wiegand Interface — Supports Wiegand 26–44 bit and 58 bit input/output for universal panel compatibility
- Dual Operation Modes — Pulse mode (momentary) and Toggle mode (latching) for different lock types
- Full Numeric Keypad — 0-9 keypad with * and # keys for PIN code entry and menu navigation
- Door Status Monitoring — Real-time detection of door open/close status
- Record Query & Data Transfer — On-device log review and user data import/export capability
- Multi-User Combination Unlock — Require 2 or more authentications for high-security areas
- Visitor Temporary Unlock — Generate time-limited access codes for guests and visitors
Technical Specifications
Applications
FAQ:
Q1: How long is the lead time?
A: For in-stock items: 3–5 business days. For OEM/ODM orders: 15–30 days depending on customization complexity. We’ll provide a firm delivery date when you place your order.
Q2: Do you ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, UPS, and sea freight. Shipping costs and delivery times vary by destination — contact us for a shipping quote.
Q3: Does the K6920 work independently or does it need an access control panel?
A: The K6920 can work in two ways: (1) Standalone mode — directly drive an electric lock via the relay output; (2) Wiegand output mode — connect to an external access control panel as a reader. Choose the mode that fits your installation.
Q4: Do you offer OEM/ODM customization?
A: Yes. We support OEM/ODM services including custom logo printing, private labeling, firmware customization, and housing color options. Minimum order quantities apply — please contact our sales team for details.
